Carbon Filter Media Roll, 1/4" Thick x 100 ft (20", 25" and 31" Widths) - For HVAC and Odor Removal Filters
Carbon Filter Media Roll, 1/4" Thick x 100 ft (20", 25" and 31" Widths) - For HVAC and Odor Removal Filters
Couldn't load pickup availability
Compare to Grainger / Air Handler 2DVX7 (20"), 2DVX6 (25") and 2DVX9 (31"). Same nominal sizes, same 1/4" thickness, same MERV 4 and UL 900 ratings. Ships free from stock within 2 business days.
Built for commercial HVAC and facilities use
This activated carbon filter media roll is the bulk format specified by HVAC contractors, property managers and facilities teams for odor control in air handlers, rooftop units, make-up air systems, kitchen and restroom exhaust, and prefilter frames. Cut it to size on site with scissors or a utility knife; no special tooling needed.
Specifications

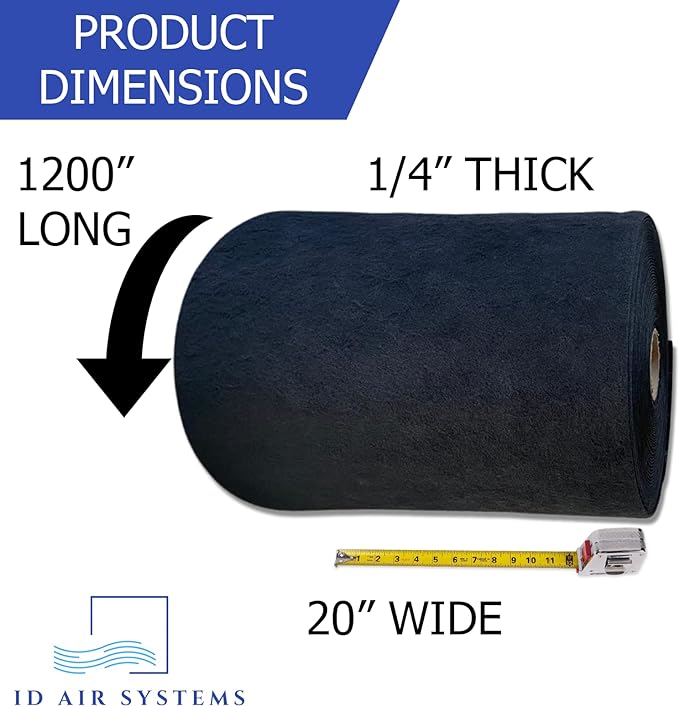

| Nominal size | 20 x 1200 x 1/4 in · 25 x 1200 x 1/4 in · 31 x 1200 x 1/4 in |
|---|---|
| Actual width | 19-1/2 in · 24-1/2 in · 31 in |
| Roll length | 100 ft (1,200 in) |
| Thickness | 1/4 in |
| Media | Activated carbon on non-woven synthetic backing |
| MERV rating | 4 |
| Initial resistance | 0.25 in WC |
| Recommended final resistance | 0.5 in WC |
| Max. operating temperature | 150°F |
| Standards | UL 900 |
| Frame | Not included (bulk media roll) |
| Roll weight | Approx. 17 lb |
| Cross-reference | Grainger 2DVX7 (20"), 2DVX6 (25"), 2DVX9 (31") |
| Country of origin | USA |
Volume pricing
Discounts apply automatically at checkout and can be mixed across widths:
- 3 to 5 rolls: 8% off
- 6 to 9 rolls: 12% off
- 10 or more rolls: 15% off
Buying for a business?
- Ships free via UPS Ground from stock in Massachusetts, within 2 business days.
- Have a PO number? Add it in the order notes at checkout and it will print on your packing slip.
- Download the Safety Data Sheet (PDF). Tax-exempt orders, W-9 requests and spec sheets: email idairsystems@gmail.com.
- Need more than 10 rolls or a custom width? Email us for a quote.
Features

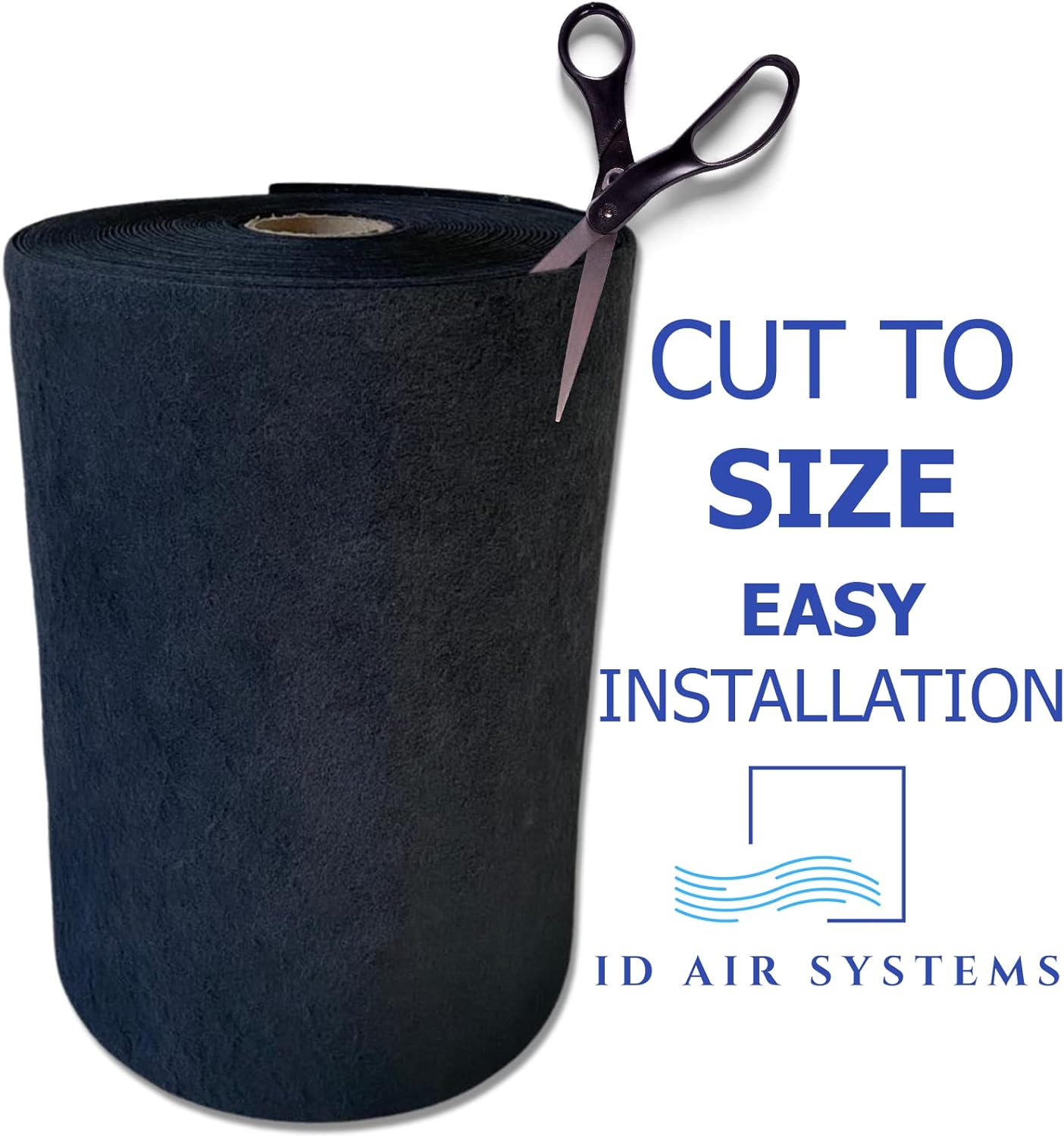

- EASY TO CUT - Our odor removal air filter roll is easy to cut to size, so you can get the perfect fit for your needs. No need for special tools or equipment.
- STOP ODORS - Keep your indoor environment fresh and clean with our carbon-infused odor removal air filter. Absorbs unpleasant smells and other gaseous contaminants in the air stream to improve indoor air quality.
- VALUE FOR MONEY - 100 linear feet of non-pleated carbon media is an economical way to remove odors from the air. Fits most standard air handlers, purifiers and prefilter frames.

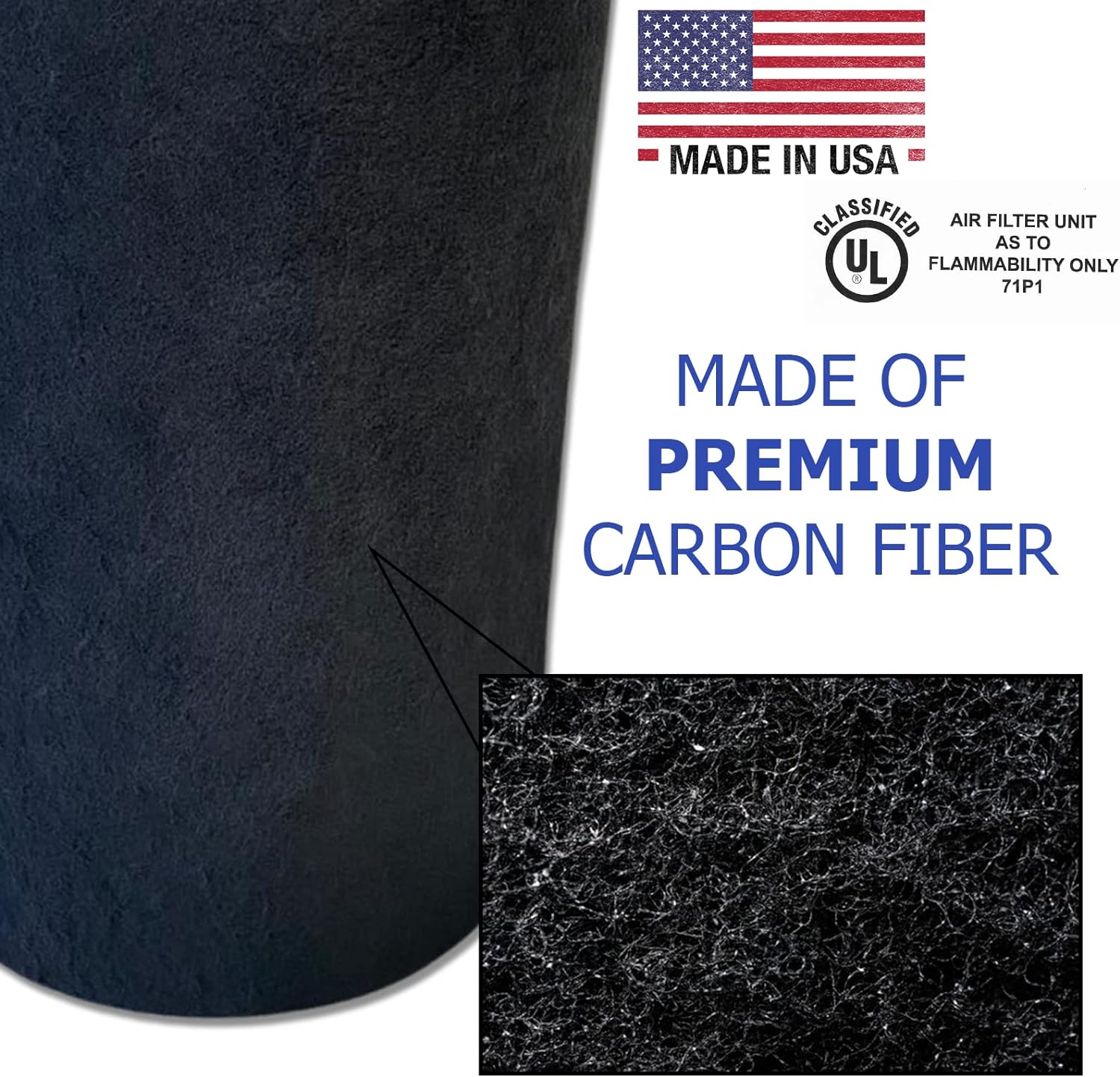

- MADE IN THE USA - ID Air Systems uses high quality activated carbon and non-woven filtration media to produce the highest-quality carbon filters, which are also UL 900 certified.
Grainger and Air Handler are trademarks of W.W. Grainger, Inc. ID Air Systems is not affiliated with or endorsed by W.W. Grainger, Inc. Part numbers are provided for cross-reference only.
